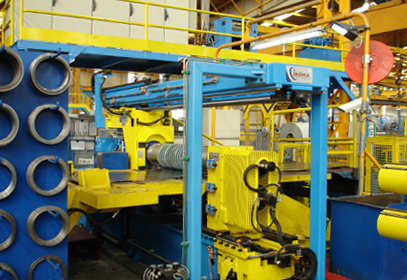

High Production Slitting line HPS type

Pictures:
• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10

• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19

• 20
• 21

Line Parameters:

Coil weight up to 40 t.

Strip width up to 2100 mm. and more

Strip thickness range from 0,05 up to 15 mm.

Line speed up to 500 m/min

Production rate:

190.000 t./year and more according production mix.

Processing materials:

Carbon Steel, Stainless Steel, Aluminium, non ferrous metals and alloys.

Cold and hot rolled coils, dry, oiled, galvanized and coatings.

Material strengths of more than 1200 N/mm2 with yield up to 1000 N/mm2.

Decoiler:

Coil inside diameter of 508 and 610 mm. and more...

Automatic coil entry, height positioning and on line centering.

Automatic strip edge centering.

Paper or Plastic film application

From top and bellow of the metal surface

Slitting shears

Automatic slitter quick change

Automatic exchange system for separating shafts

High axial accuracy cutting system

High number of cuts on slitting shear with minimum deflection and without cutting burr

Loop pit

Automatic metal strip threading system from the slitting shear to recoiler, through the tension unit.

Automatic strip loop control

Braking and Tension Unit

Configuration:

Combination according strip type of metal and surfaces

High winding accuracy system by means of movable tension unit and automatic control system.

Special braking system for gentle metal surface treatment as stainless steel, aluminium, coatings and so on.

Recoiler

With and without use of slit coils separating system.

Line Automation

Custom tailored high - medium- low automation requirements

Modem on- line teleservice

Coil Packaging Line

Without production interruption

Circumference banding on recoiler

Custom tailored packaging line lay-out

More information about:

• Slitting shear systems
• Braking and Tension units
• Recoilers
• Scrap baler
• Coil removal car station
