High Production Cut to Length HPC type
2.- Cut to Length Line for strip of 0,5 mm. up to 2 mm. x 1250 mm.
- Line Parameters:
- Coil weight up to 40 t.
- Strip width up to 2100 mm. and more
- Strip thickness from 0,10 up to 15 mm. and more
- Production speed up to 140 m/min.
- Production Capacity:
- 100.000 t. y of mix production.
- Types of material:
- Carbon Steel, stainless steel, aluminium, non ferrous metals and alloys.
- Cold rolled, hot rolled, pickled, galvanized, dried, oiled, any coating and metals with sensitive surfaces.
- Material strengths of more than 1200 N/mm2 with yield up to 1000 N/mm2.

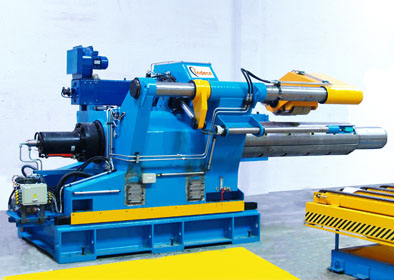

- Decoiler:
- Coil inside diameter 508 and 610 mm. and more...
- Automatic coil height and in-line centering.
- Automatic strip edge centering system
- Leveller:
- Fully automatic cassette change up system, up to 23 levelling rolls in "four" and "six" highs design.
- Strip Marking:
- Single or multi - strand marking from top or from strip bottom.
- Edge Trimmer:
- With electric motor and automatic setting
- Slitting machine (Multi-strand):
- Automatic slitters quick - change setting system of up to 5 strands
- Cut to Length Shear system types:
- Rotary Shear
- Cutting rate of 180 cuts/min.
- Length tolerance of ± 0,2 mm.
- Flying Shears
- Cutting rate of 50 m/min.
- Length tolerance of ± 0,2 mm.
- Eccentric Shear with feeder rolls
- Cutting rate of 140 cuts / min.
- Length tolerance of ± 0,1 mm.
- Swing Shears
- For trapezium shape formats
- Oscillation tolerance ± 30 °
- Leveller feed & Eccentric Shear
- Cutting rate of 45 m/min.
- Length tolerance of ± 0,2 mm.
- Surface Protection
- Paper or foil aplication system for plate protection, from top or from below, for sensitive surfaces.
- Stacker
- Precision stacking systems.
- Special design for sensitive surfaces.
- Vacuum stacker
- Bomb door type stacker
- Magnetic belt stacker
- Stacking accurancy at length/width of ± 0,5 mm.
- Stacks packaging without production interruption
- Custom tailored high - medium - low of automation requirements
- Modem on-line teleservice
