High Production Slitting line HPS type

Untitled Document

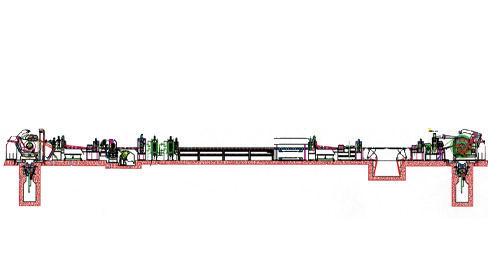

20.- High performance slitting line with integrated Inspection Line.


Line Parameters:
Coil weight up to 40 t.
Strip width up to 2100 mm. and more
Strip thickness range from 0,05 up to 15 mm.
Line speed up to 500 m/min
Production rate:
190.000 t./year and more according production mix.
Processing materials:
Carbon Steel, Stainless Steel, Aluminium, non ferrous metals and alloys.
Cold and hot rolled coils, dry, oiled, galvanized and coatings.
Material strengths of more than 1200 N/mm2 with yield up to 1000 N/mm2.
Decoiler:
Coil inside diameter of 508 and 610 mm. and more...
Automatic coil entry, height positioning and on line centering.
Automatic strip edge centering.
Paper or Plastic film application
From top and bellow of the metal surface
Slitting shears
Automatic slitter quick change
Automatic exchange system for separating shafts
High axial accuracy cutting system
High number of cuts on slitting shear with minimum deflection and without cutting burr
Loop pit
Automatic metal strip threading system from the slitting shear to recoiler, through the tension unit.
Automatic strip loop control
Braking and Tension Unit
Configuration:
Combination according strip type of metal and surfaces
High winding accuracy system by means of movable tension unit and automatic control system.
Special braking system for gentle metal surface treatment as stainless steel, aluminium, coatings and so on.
Recoiler
With and without use of slit coils separating system.
Line Automation
Custom tailored high - medium- low automation requirements
Modem on- line teleservice
Coil Packaging Line
Without production interruption
Circumference banding on recoiler
Custom tailored packaging line lay-out
