Mid Production Slitting Line, MAX 1500 SL type

Untitled Document

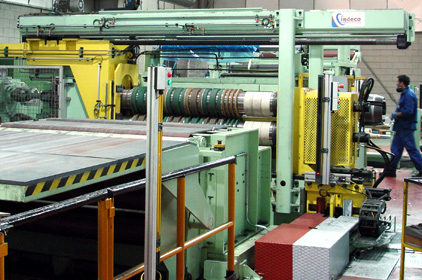

4.- Slitting line for stainless steel of 1500 mm. x 4 mm. x 150 m/min.

Mid Production Slitting Line, MAX 1500 SL type

This is an optimised Slitting Line with a modular basic design on which can add and fit options for increasing production capacity and performance characteristics of the Line, according customer's specifications and requirements.

This modular design is applied so for mechanical components as for electronics because an integrated "in house" construction, made inside INDECO's plant.

All control systems are manufactured with elec. standard components, available in the market permitting an easy replacement for maintenance services anywhere at anytime.

The main advantage of this "MAX" type modular design for the customer is a present low investment, for a High Quality and Performance Line and a future step by step development according production requirements.

Line Production Parameters for a Slitting Line MAX 1500 SL type:

Type of material to be processed:

Carbon steel, Stainless Steel, Aluminium, Non ferrous metals and alloys.
Cold and hot rolled, pickled, dry or oiled, galvanized and coatings.

Mechanical characteristics:

  Min. Max.
Material strength N/mm² 450 900
Yield point N/mm² 250 600

Coil characteristics:

  Min. Max.
Strip width mm. - 1500
Strip thickness mm. 0,3 3
Coil O.D. mm. 800 1500
Coil I.D. mm. 508 610
Coil weight Tn. - 10

Slitting line general specifications:

Processing speeds:

Strip Threading speed - mts/min. 15
Line Speed N¹ 1 mts/min. 0-100

Tensioning units (Unwind/Recoiling):

Strip width max. mm Line speed mts/min.
Tension in Kg.
Unwind Recoiling
1500 x 3 100 900 4000

Line Design:

Metal Strip Width (mm) Line speed mts/min. Line type
1500 x 3 100 One loop

Board of Production:

Material: σ R = 600 N/mm²

Thickness mm. 0,3 0,5 1 1,5 2 2,5 3
Nº of Strips 30 30 15 12 10 8 6
Production speed mts/min. 100 100

Recoiling specifications:

    Min. Max.
Range of strip widths mm. 20 1500
Range of strip thikness mm. 0,3 3
Range of coils O.D. mm. 800 1500
Coils I.D. mm. - 508
Coils weight Tm. - 10

Electric Parameters:

  10% 5%
Power Elec. current 380 V. 50 Hz.
Auxiliary Elec. current 110 V. 50 Hz.
Solenoid valves Elec. current 110 V. 50 Hz.

Compressed air

Air Pressure 5 bars.

Hydraulic power pack

nominal pressure 100 bars.
Max. pressure 110 bars.
Cooling system by Air

Climatic condition

  Min. Max.
Outdoor temperature -6º C +44º C
Indoor temperature +5º C +40º C
